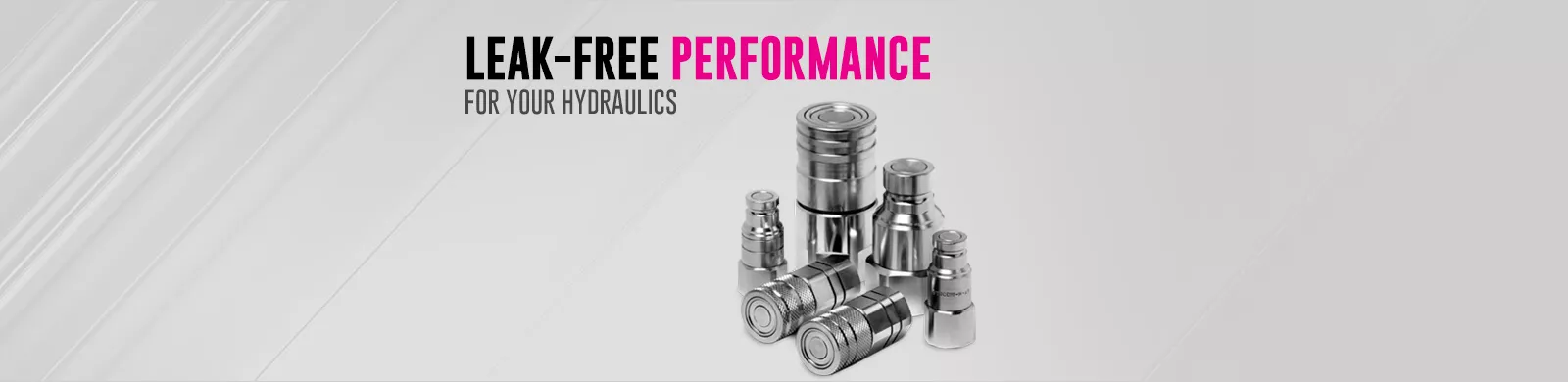

Flat Face Couplers

Flat face couplers are essential components in hydraulic systems, ensuring leak-free performance, minimizing contamination, and delivering reliable connections for efficient operations. These innovative couplers are vital for optimizing hydraulic system performance across demanding industries like construction, agriculture, material handling, and other mobile equipment and industrial applications.

Stucchi is a global leader in designing and manufacturing flat face couplers, setting the benchmark for quality and reliability. With over 60 years of engineering expertise and problem-solving innovation, Stucchi has earned a reputation for delivering durable quick-connect solutions that exceed customer expectations.

Our commitment to excellence extends to providing versatile hydraulic solutions for various industries. From standard product offerings to custom-designed solutions for complex configurations, Stucchi’s flat face couplers are trusted for their durability, ease of use, and ability to enhance hydraulic system performance. Discover how Stucchi’s flat face hydraulic couplers can streamline your operations, reduce downtime, and provide unmatched reliability in the toughest applications.

• A Premier
• FIRG
• APM
• A-HD
• PUSH PULL
• FIRGQ
• FL
• A-ZN
• A-PREMIER INTERNATIONAL SERIES
• A-SK Skydrol Series

Flat Face Hydraulic Quick Couplers

Flat face couplers are specialized hydraulic quick couplings designed to deliver leak-free, efficient performance in demanding applications. Unlike traditional hydraulic couplers, flat face couplers feature a unique design that minimizes fluid loss during connection and disconnection, helping to prevent leaks and reduce contamination.

Flat face hydraulic couplers are essential for maintaining the integrity of hydraulic systems by creating a secure seal that withstands high pressure while protecting the environment from hazardous fluid spills. Their innovative design makes them ideal for industries that require reliable, clean, and durable hydraulic connections.

Why Choose Stucchi Flat Face Couplers?

Stucchi flat face couplers set the standard for excellence in hydraulic connections. Designed to deliver reliable, leak-free performance, these couplers are built to handle demanding conditions while maintaining optimal system efficiency. Whether you’re operating in construction, agriculture, material handling, or heavy industry, Stucchi’s flat face hydraulic couplers provide unparalleled durability and functionality.

Flat face quick couplers provide significant benefits over traditional hydraulic couplers, making them the preferred choice for many applications.

Flat-Face Coupler Product Series

Stucchi’s flat-face coupler product series is designed to meet the diverse needs of hydraulic systems across various industries. Each series is built for specific applications, offering leak-free connections, superior durability, and exceptional performance in demanding environments. Here’s a detailed overview of our flat-face coupler lineup:

A Premier Series Flat-Face Couplers

The A Premier Series flat-face couplers are engineered for heavy-duty applications that demand exceptional durability and reliability.

• Unique Features:
  • Robust design to withstand extreme conditions.
  • Leak-free connections to maintain hydraulic system integrity.
• Applications: Perfect for construction, demolition, and industrial operations where heavy-duty performance is essential.

FIRG Series Flat-Face Couplers

The FIRG Series flat-face couplers are the industry standard for versatility and reliability in general-purpose hydraulic systems.

• Unique Features:
  • ISO 16028 compliance for compatibility across different equipment brands.
  • Versatile design suitable for various hydraulic systems.
• Applications: Ideal for agriculture, material handling, and construction industries requiring flexible flat-face coupler solutions.

APM Series Flat-Face Couplers

Designed for easy connections under residual pressure, the APM Series flat-face couplers feature Stucchi’s innovative CUP Technology for unmatched convenience.

• Unique Features:
  • Triple valve system for efficient pressure relief.
  • Manual coupling under residual pressure for easy operation.
• Applications: Perfect for construction, mining, and other industries where residual pressure is common.

A-HD Series Flat-Face Couplers

The A-HD Series flat-face couplers are built for extreme pressure and rugged environments, offering heavy-duty performance and exceptional reliability.

• Unique Features:
  • Heavy-duty construction for high-pressure systems.
  • Leak-resistant connections in challenging conditions.
• Applications: Best suited for industrial operations, oil and gas applications, and high-pressure hydraulic systems.

Push-Pull Series Flat-Face Couplers

The Push-Pull Series flat-face couplers are designed for quick and convenient one-handed operation, making attachment changes fast and efficient.

• Unique Features:
  • Push-pull functionality for ease of use.
  • Reliable performance in tight or demanding environments.
• Applications: Ideal for agricultural equipment and material handling machinery.

FIRGQ Series Flat-Face Couplers

Compact and reliable, the FIRGQ Series flat-face couplers are ideal for applications where space is limited, offering exceptional performance in small-scale hydraulic systems.

• Unique Features:
  • Compact design for use in confined spaces.
  • Durable construction for reliability in demanding applications.
  • QPQ plating technology provides corrosion resistance superior to zinc plating in many environments.
• Applications: Suitable for compact construction equipment and industrial systems requiring flat-face couplers.

FL Series Flat-Face Couplers

The FL Series flat-face couplers are optimized for high-flow applications, ensuring efficient hydraulic performance and reduced energy loss.

• Unique Features:
  • Enhanced flow capacity for high-demand systems.
  • Robust construction to withstand heavy-duty use.
• Applications: Perfect for high-flow hydraulic systems in construction and agriculture.

A-ZN Series Flat-Face Couplers

The A-ZN Series flat-face couplers feature a zinc-nickel coating for superior corrosion resistance, making them ideal for use in harsh environments.

• Unique Features:
  • Corrosion-resistant coating for long-lasting durability.
  • Leak-free performance in outdoor and marine conditions.
• Applications: Ideal for outdoor construction, marine environments, and industrial applications where corrosion resistance is critical.

A Premier International Series Flat-Face Couplers

The A Premier International Series flat-face couplers are designed for global compatibility, ensuring reliable connections in international operations.

• Unique Features:
  • Standardized design for seamless international use.
  • Dependable performance in diverse environmental conditions.
• Applications: Perfect for industries requiring globally compatible hydraulic connections.

A-SK Skydrol Series Flat-Face Couplers

The A-SK Skydrol Series flat-face couplers are specially designed to handle Skydrol hydraulic fluids, offering resistance to aerospace-grade chemicals and high-pressure environments.

• Unique Features:
  • Engineered for compatibility with Skydrol and similar fluids.
  • High-pressure resistance for aerospace and industrial applications.
• Applications: Ideal for aerospace operations and industries requiring specialized hydraulic couplers.

Stucchi’s flat-face coupler product series provides reliable, efficient solutions tailored to meet the specific needs of hydraulic systems across industries. With ISO 16028-compliant designs and advanced features like CUP Technology, Stucchi continues to set the standard for innovation, durability, and performance in hydraulic connection solutions.

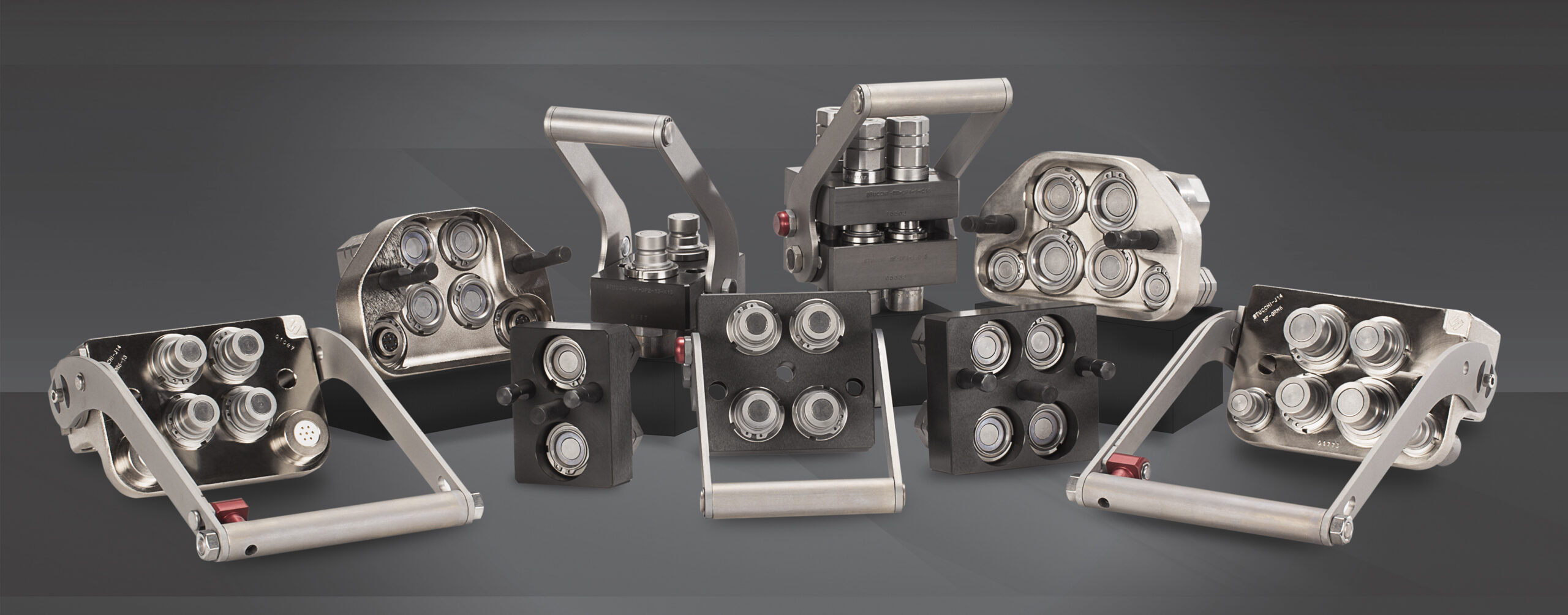

Flat Face Couplers with Multi-Coupling Plates

Pair Stucchi FAP FAPZ Seris flat face couplings with Stucchi’s multi-coupling plates for a durable, reliable, and leak-free quick connect solution.

FAP FAPZ Series Flat Face Couplers to Assemble on Multicoupling Plates

The FAP FAPZ Series is manufactured in high-resistance carbon steel with zinc-plated surface treatment for durable and corrosion-resistant coupling solutions. The flat face valve allows quick connect and disconnect under high residual pressure with no fluid loss. This Case Study highlights the benefits of adapting multi-coupling plates to stainless steel with Stucchi FAP flat face couplers, such as easy, quick connect with no damage and zero leakage.

Key Benefits of Stucchi Flat Face Couplers

Leak-Free Connections and Disconnections

Stucchi’s flat face couplers ensure dripless connections and disconnections, ensuring a clean work environment and conserving hydraulic fluid. This reduces maintenance needs and minimizes environmental risks and cleanup efforts.

Resistance to Pressure, Vibration, and Contamination

Flat face couplers are engineered to withstand pressure and harsh conditions, making them suitable for heavy-duty applications. Stucchi quick couplers are engineered for tough environments and resist high pressures, frequent vibrations, and external contaminants. Their robust design protects your hydraulic system, extending the life of your equipment and ensuring consistent performance.

Ease of Cleaning, Reducing Contamination Risks

The smooth, flat surfaces of flat face quick couplings make them easy to clean, reducing the risk of dirt and debris entering the hydraulic system. This helps to maintain system efficiency, minimize wear on components, and extend the lifespan of equipment.

Versatile Compatibility

Stucchi flat face couplings are designed for compatibility with a wide range of hydraulic systems, making them ideal for various industries and applications. From heavy construction equipment to agricultural machinery, these couplers always deliver reliable results.

Flat face couplings are the cornerstone of efficient hydraulic systems, offering superior performance and reliability for various applications. With their ability to prevent leaks, resist contamination, and withstand high pressures, flat face quick couplings set the standard for modern hydraulic connections.

CUP Technology: Connection Under Pressure

Stucchi’s CUP Technology (Connection Under Pressure) revolutionizes hydraulic connections by allowing safe and efficient coupling even when residual pressure is present. This advanced system eliminates the frustration and downtime associated with connecting couplers under pressure, making operations smoother and safer. We offer several flat face couplings that provide easy connect under pressure such as the APM flat face coupler series.

How Easy CUP Technology Works

A connect-under-pressure system uses a triple valve design to relieve pressure and ensure tight, reliable connections. This innovative feature makes coupling effortless, even in high-pressure systems or applications with residual pressure in the circuit.

Benefits of CUP Technology

• Safety: Minimized risk of accidental fluid spray or operator injury during connection.
• Efficiency: Quick, hassle-free coupling reduces downtime and increases productivity.
• Versatility: Compatible with a broad range of Stucchi couplers, making it adaptable to various industries and applications.

Learn more about how CUP Technology enhances hydraulic system performance:

Video – How to Connect with Residual Pressure

Learn More – Connect Under Pressure Hydraulic Couplers

With Stucchi’s flat face couplers and CUP Technology, you can trust your hydraulic systems to operate efficiently, safely, and reliably, even in the toughest conditions.

The Importance of ISO 16028

ISO 16028 is the internationally recognized standard for flat face hydraulic coupler designs. This standard defines the dimensions and performance requirements for flat face couplers, ensuring compatibility and reliability across various hydraulic systems and applications. By adhering to ISO 16028, manufacturers assure users that their hydraulic systems will operate seamlessly, regardless of the equipment brand or industry.

Stucchi’s Role in Setting the ISO 16028 Standard

Stucchi played a pivotal role in the design and adoption of ISO 16028, the international standard that specifies the dimensions and performance requirements for hydraulic flat face quick couplings. Our innovative flat face ISO 16028 coupler design was instrumental in establishing the standards that define today’s global industry. By focusing on leak prevention, ease of use, and durability, Stucchi’s design became the blueprint for flat face couplers, setting a new benchmark for hydraulic system performance.

The ISO 16028 standard ensures brand compatibility and promotes safer and more efficient hydraulic systems by minimizing fluid loss and contamination risks. Stucchi continues to lead the industry by developing cutting-edge solutions that meet and exceed these stringent requirements.

Learn more about Stucchi’s contributions to ISO 16028 and how our ISO 16028 flat face couplers revolutionized the hydraulic industry: ISO 16028: The Stucchi Design Becomes an International Standard.

Safety and Injury Prevention

Hydraulic fluid exposure poses significant risks to operators, ranging from burns and skin irritation to high-pressure fluid injection injuries, which can lead to serious complications or even amputation. In addition to personal safety risks, hydraulic fluid leaks can cause environmental contamination and costly system inefficiencies.

Stucchi’s flat face couplers are engineered with safety as a priority, helping to mitigate these risks through innovative design features. The flat face design prevents hydraulic fluid spills during connection and disconnection, reducing the chances of accidental exposure to high-temperature or high-pressure fluids.

Stucchi couplers are built to withstand high-pressure environments, minimizing the likelihood of sudden failures or leaks that could endanger operators. The smooth, flat surface of Stucchi couplers simplifies cleaning, reducing the buildup of dirt and debris that could compromise hydraulic system performance or introduce contamination.

Stucchi’s CUP Technology allows for safe connections even under residual pressure, reducing the risk of accidental fluid spray and enhancing operator safety during attachment changes.

To learn more about the dangers of hydraulic fluid and how Stucchi’s solutions protect operators and equipment, read our blog: The Dangers of Hydraulic Fluid and How to Prevent Injury.

Stucchi’s flat face couplers provide a reliable and safe solution for maintaining hydraulic systems, ensuring operator protection and optimal system performance in any environment.

Applications of Stucchi Flat Face Couplers

Stucchi flat face couplers are designed to meet the demands of various industries, delivering reliable, leak-free connections and exceptional durability. Their versatility makes them the go-to solution for hydraulic systems in various applications:

• Construction
  Stucchi couplers ensure reliable connections for excavators, skid steers, and loaders, enabling smooth operation of attachments like breakers, thumbs, and grapples. Their rugged design easily handles the high pressures and vibrations of construction sites.

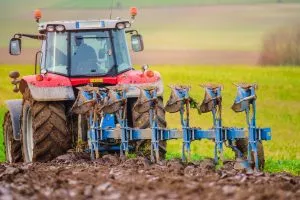

• Agriculture
  Farmers and agricultural professionals rely on Stucchi flat face couplers for tractors, implements, and other equipment. These couplers provide drip-free performance, preventing fluid loss and contamination during frequent attachment changes.
• Material Handling
  Stucchi couplers deliver durable, reliable connections for forklifts, telehandlers, and other material-handling equipment in warehouses and industrial settings. Their robust construction withstands the heavy loads and continuous operations typical in these environments.
• Forestry
  Forestry operations demand tough, durable hydraulic systems that can perform in extreme outdoor conditions. Stucchi flat face quick couplers resist corrosion, contamination, and wear, ensuring dependable performance in the harshest environments.

Choosing the Right Flat Face Coupler for Your Needs

Selecting the best type of flat face coupling for your hydraulic system is crucial for achieving optimal performance and reliability. Follow these steps to determine the ideal Stucchi coupler for your application:

1. Assess Pressure Requirements
   Evaluate the working and burst pressure demands of your hydraulic system to ensure the coupler can handle the expected loads. Learn more about Working and Burst Pressure Ratings.
2. Identify Environmental Factors
   Consider the operating environment, including exposure to corrosion, vibration, and extreme temperatures. For example, zinc-nickel-coated couplers are ideal for marine or outdoor applications.
3. Consider Specific Application Needs
   Determine the type of attachment or equipment you’re using. If residual pressure handling is required, choose couplers with CUP Technology for easy connections under pressure.

By addressing these factors, you can select the flat face coupler that enhances your hydraulic system’s safety, efficiency, and durability. Stucchi’s hydraulic experts are always available to help operators choose the right hydraulic quick coupling for their application.  If you have any questions, feel free to contact our Technical Help Desk, fill out the Contact form, start a Chat, or just give us a call.

Stucchi has established itself as a leader in flat face quick coupler innovation, delivering products that combine exceptional performance, safety, and reliability. Stucchi flat face couplings are designed to optimize your hydraulic systems and ensure a leak-free, efficient operation for many mobile equipment and industrial applications. Explore Stucchi’s flat face coupler product series to discover solutions designed to your specific needs.

Stucchi has been a global leader in hydraulic solutions for over 60 years, offering innovative, durable, and reliable couplers for diverse industries. Let us help you upgrade your hydraulic systems for maximum efficiency and performance. Contact us today for expert advice and to find the right connection and fluid control products for you including our flat face couplers.
